M(Machine) Series
AF-120
AF-120 60L Real Machine Series
SIZE
(W)2460×(L)2460×(H)740
Own weight
(including battery)
57.3kg
Gross weight
(including drug weight)
117.3kg
Flight time
10~15min
Spray width
9~12m
Spray amount
0.8L/min ~ 16L/min
Control area
up to 790a (recommended 260~400a)
Battery
56,000mAh Comporter battery
Chemical tank capacity
60L
Working time
6~10minutes (60 liter spray standard)
Spray altitude
4~5m
Working speed
3~7m/s
The most powerful machine
60-liter agricultural drone AF-120
- The best material science that makes 60L super-sized frame possible
- Strong, sturdy frame made from Real Air Carbon and Air Duralumin alloys
- Durability made by advanced vibration control techniques and chemical resistance technologies
- Secure stable flight performance with a powerful 8-axis power system
(It can fly and land normally even if there is more than one motor)
AFi's Powerful Frame Tech
- Robust frame and dustproof design for stable flight performance
- Maximize energy use through efficient vibration suppression
- Strong frame with aviation materials

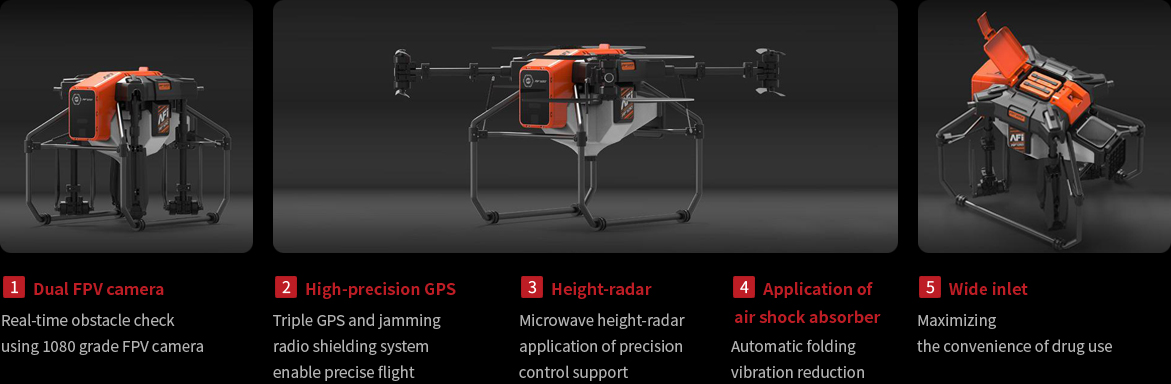

AF-120 main composition
Comfortably fly – AFi flight assistance system
Radar integrated system head
16L injection pump system per minute
184kg Max Thrust AFi Dual Conversion Motor System
60L wide inlet Mobidic tank system
