M(Machine) Series

AF-32

AF-32 30L Real Machine Series

AF-32

SIZE

(W)3090*(L)3090*(H)690

Own weight
(including battery)

35.4kg

Gross weight
(including drug weight)

67kg

Flight time

15~20min

Spray width

8~10m

Spray amount

0.8L/min~5L/min

Control area

up to 400a (recommended 200-265a)

Battery

22,000mAh BMS smart battery

Chemical tank capacity

32L (quick release chemical tank for
switching granules)

Working time

6-10 minutes (32 liter spray standard)

Spray altitude

4~5m

Working speed

3~7m/s

Super-large drones are completely different from existing drones.

  • The best material science that enables "30L" super-large aircraft (highest grade carbon + duralumin)
  • Durability made with advanced vibration suppression technology and my chemical technology
  • Reduce maintenance time with strong durability and perfect assembly design
  • AF-32's powerful power system (maximum power 75kg)

AF-32's powerful power system maximum power 75kg

  • Ensuring flight stability with a powerful 8-axis power system (maximum power 75 kg)
  • Higher output implementation on 48V12S power system (10-20 minute flight)

AFI's powerful spray system with maximum spray width
(9-12m),
the largest in Korea

  • Powerful 12S dual pump system that injects 10 liters per minute
  • Speed-linked adjustment and spray adjustment in% units are possible for application of electronic flow meters
  • Minimize scattering suppression for efficient use of low and strong winds

main composition AF-32

Assembly type pump system
Bi-directional drug inlet
Waterproof full face cover
Modular structure

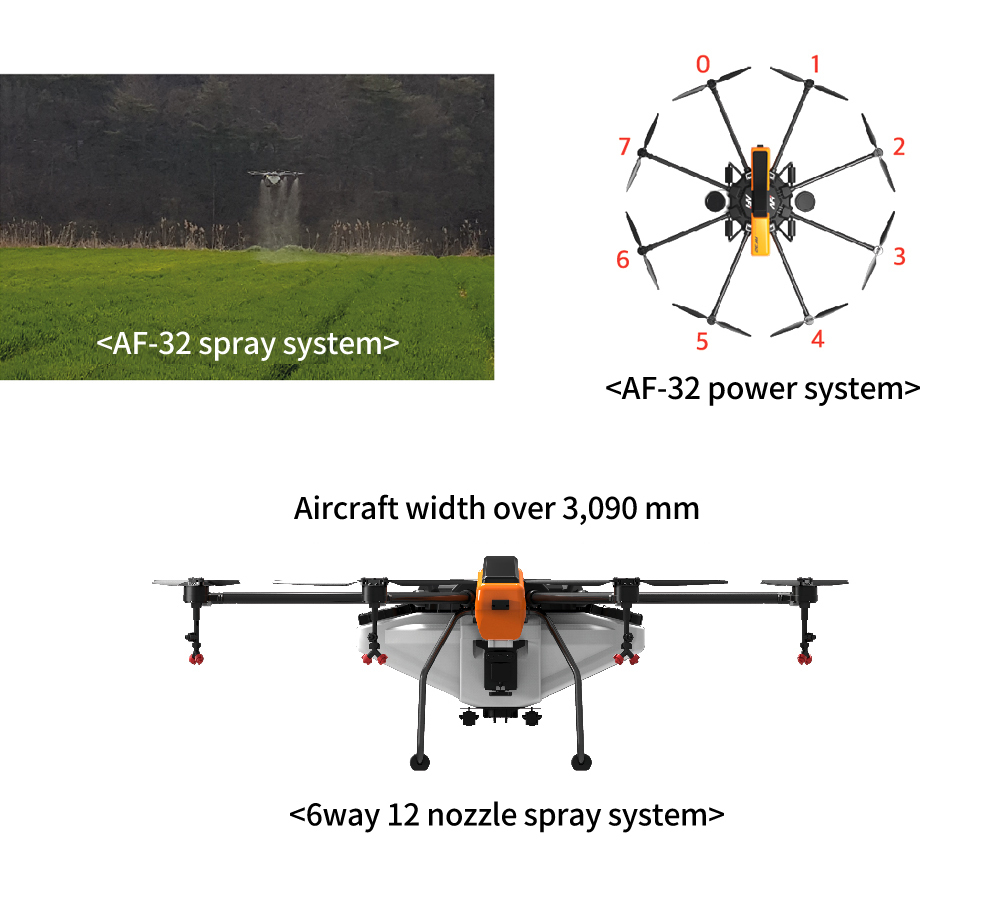

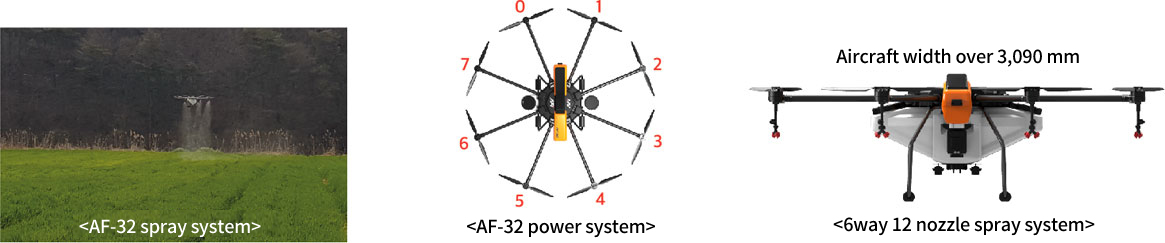

AF-32 spray system
AF-32 spray system
  • Manual flight mode
  • AB control mode
  • Automatic control mode
  • U-turn flight
  • Stop point memory
  • Advanced rider
  • FPV camera
  • Touch mapping
  • Show flight path
  • Confirmation of flight data
