M(Machine) Series

AF-52

AF-52 40L Real Machine Series

AF-52

SIZE

(W)2870×(L)2870×(H)730

Own weight
(including battery)

45.12kg

Gross weight
(including drug weight)

85.12kg

Flight time

15~20min

Spray width

9~12m

Spray amount

0.8L/min ~ 10L/min

Control area

up to 495a (recommended 264-396a)

Battery

40,000mAh BMS smart battery

Chemical tank capacity

52L (quick release chemical tank for switching granules)

Working time

6-10 minutes (40 liter spray standard)

Spray altitude

4~5m

Working speed

3~7m/s

A 40-liter super-large agricultural drone with great durability AF-52

  • 40L super-large drone, the best material science that makes this possible
  • Strong, sturdy drone made from Real Air Carbon and Air Duralumin alloys
  • Durability made by advanced vibration control techniques and chemical resistance technologies
  • Secure stable flight performance with a powerful 8-axis power system
    (It can fly and land normally even if there is more than one motor)

AF-52's powerful power system
Maximum power of 120kg

  • Normal landing is possible even if the prop is broken in an emergency situation and the motor stops
  • Powerful flight performance with relaxed power, maximum take-off weight of 85kg (maximum power of 120kg) Provision
  • 48V 12S 40,000mAh power system provides higher output (10-20 min flight)

AFi's powerful spraying system with a maximum spray width of 10 to 12 meters

  • A powerful 12S dual pump system that sprays 10 liters per minute
  • By applying electronic flow sensors, it is possible to adjust the speed and spray in % units
  • Minimize scattering by efficient downward wind utilization
  • Effective Spray Width 10-12m
    (Korea's largest)

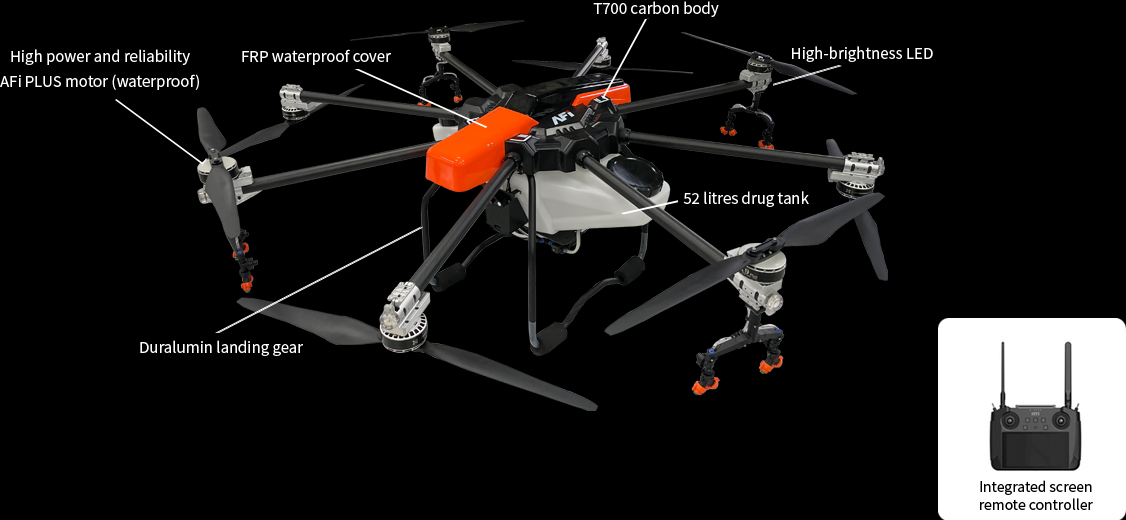

AF-52 main composition

AF-52 주요구성

Comfortably fly – AFi flight assistance system

1 Dual FPV camera

Real-time obstacle check using 1080 grade FPV camera

2 High-precision GPS

Triple GPS and jamming radio shielding system enable precise flight

3 Height-radar

Microwave height-radar application of precision control support

4 4WAY 8 NOZZLE

FLEXIBLE Y-TYPE DUAL NOZZLE

5 2WAY Wide Inlet

Prepare the drug quickly and comfortably with a 180mm wide injection port
