M(Machine) Series
AF-38
AF-38 32L Real Machine Series
![AF-38](/image/sub2_2_3_img1.jpg)
SIZE
(W)2893×(L)2630×(H)700
Own weight
(including battery)
33.54kg
Gross weight
(including drug weight)
65.54kg
Flight time
15~20min
Spray width
9~12m
Spray amount
0.8L/min ~ 10L/min
Control area
up to 396a (recommended 198-265a)
Battery
28,000mAh BMS smart battery
Chemical tank capacity
38L(quick release chemical tank for switching granules)
Working time
6-10 minutes (32 liter spray standard)
Spray altitude
4~5m
Working speed
3~7m/s
Strong body
The best 32-liter drone
AF-38
- Durability made by advanced vibration control techniques and chemical resistance technologies
- Secure stable flight performance with a powerful 6-axis power system
- Strong durability minimizes damage in the event of a fall
- Perfect assembly design reduces after-sales service time
- Easy self-maintenance is sufficient
Triple-GPS-based powerful ground system
- Triple Satellite Receiver
(GPS+GLONASS+Bedou satellite) - Capturing up to 42 satellite signals on the Korean Peninsula
- Ultra-high resolution positioning hold performance within 10cm
Efficient control design even in complex terrain
- Automatic control can be controlled over 200a in one flight
- AFi automatic calculation precision spraying
- Real-time guidance on key information such as battery voltage, satellite reception status, and flight speed

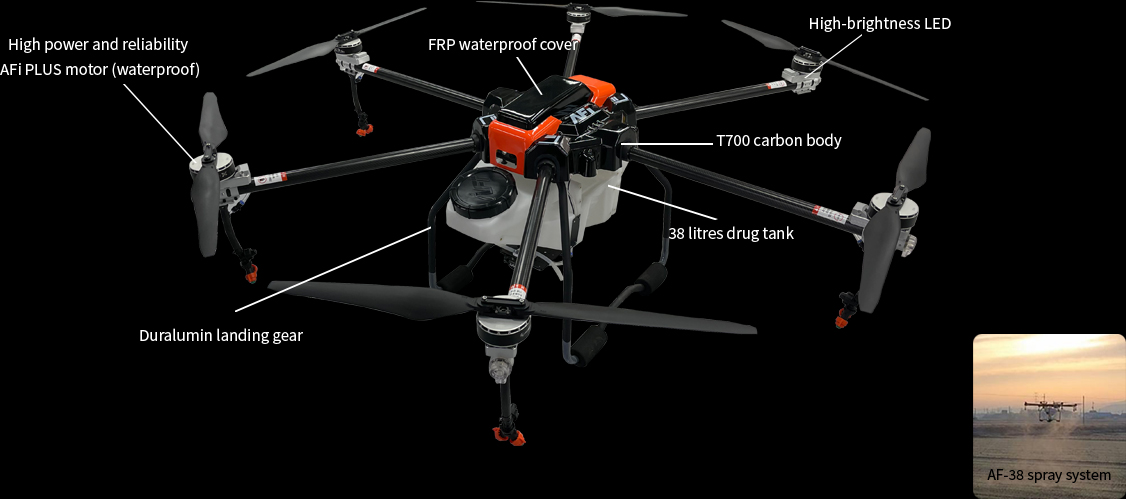

AF-38 main composition
![AF-38 주요구성](/image/sub2_2_3_img2_en.jpg?v=0413)
Comfortably fly – AFi flight assistance system
![](/image/sub2_2_3_img3.jpg)
1 Dual FPV camera
Real-time obstacle check using 1080 grade FPV camera
![](/image/sub2_2_3_img4.jpg)
2 High-precision GPS
Triple GPS and jamming radio shielding system enable precise flight
![](/image/sub2_2_3_img5.jpg)
3 Height-radar
Microwave height-radar application of precision control support
![](/image/sub2_2_3_img6.jpg)
4 4WAY 8 NOZZLE
FLEXIBLE Y-TYPE DUAL NOZZLE
![](/image/sub2_2_3_img7.jpg)
5 2WAY Wide Inlet
Prepare the drug quickly and comfortably with a 180mm wide injection port
