PRODUCT

P(Portable) Series

AF-16

AF-16 16L Compact-sized Portable Machine

AF-151

SIZE

(W)2025×(L)2025×(H)745

Own weight
(including battery)

23.9kg

Gross weight
(including drug weight)

43.9kg

Flight time

10~25min

Spray width

5~8m

Spray amount

0.8L/min ~ 5L/min

Control area

up to 200a (recommended 100-132a)

Battery

22,000mAh Comporter Battery

Chemical tank capacity

20L (quick release chemical tank for switching granules)

Working time

6-10 minutes (20 liter spray standard)

Spray altitude

4~5m

Working speed

3~7m/s

AFi spray system



  • 5L/min high precision brushless pump motor
  • The removable drug tank and 110mm wide dip type injection make the drug ready easily and quickly
  • Safely replace the drug tank by preventing drug spills through the use of a funnel system

Let's fly comfortable!
flight assistance system

  • Real-time obstacle check using 1080 grade FPV camera
  • High-precision triple GPS and jamming shielding system enable precise flight
  • It's microwave Godolai application of precision control support

AFi grain dispensing system that supports 20L grain dispensing

  • Real-time navigator flight and aircraft status on the ground in real-time
  • Check the drug residue and spray condition with a transparent window

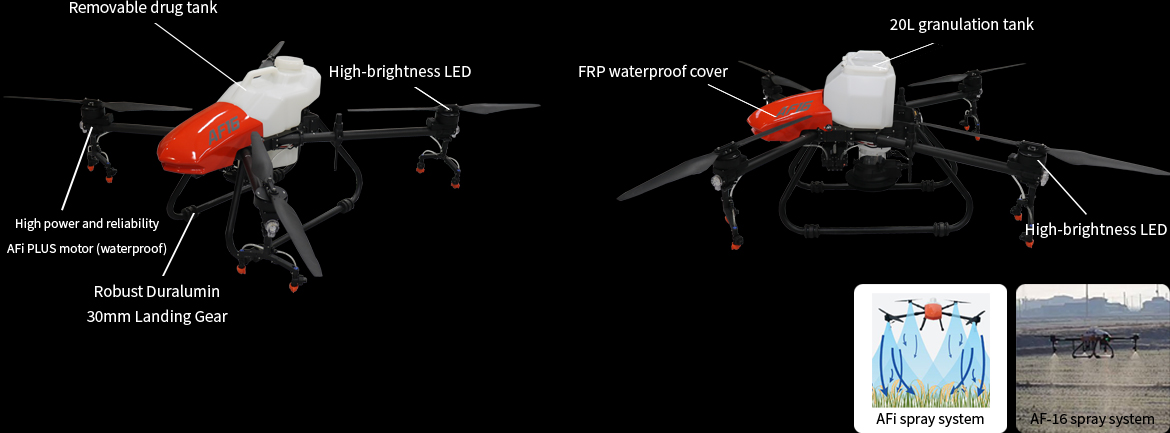

AF-16 main composition

AF-16 주요구성

Comfortably fly – AFi flight assistance system

1 Dual FPV camera

Real-time obstacle check using 1080 grade FPV camera

2 High-precision GPS

Triple GPS and jamming radio shielding system enable precise flight

3 Height-radar

Microwave height-radar application of precision control support

4 4WAY 8 NOZZLE

FLEXIBLE Y-TYPE DUAL NOZZLE

Agricultural Force Innovation
