PRODUCT

P(Portable) Series

AF-151

AF-151 10L Compact-sized Portable Machine

AF-151

SIZE

(W)1980×(L)1980×(H)560

Own weight (including battery)

16.7kg

Gross weight (including drug weight)

24.9kg

Flight time

10~25min

Spray width

6~8m

Spray amount

0.8L/min ~ 5L/min

Control area

up to 100a
(recommended 50- 66a)

Battery

12,000 mAh Comporter battery

Chemical tank capacity

10L (quick release chemical tank for switching granules)

Working time

6-10 minutes
(10 liter spray standard)

Spray altitude

4~5m

Working speed

3~7m/s

AFi spray system



  • 5L/min high precision brushless pump motor
  • The removable drug tank and 110mm wide dip type injection make the drug ready easily and quickly
  • Safely replace the drug tank by preventing drug spills through the use of a funnel system

Let's fly comfortable!
flight assistance system

  • Real-time obstacle check using 1080 grade FPV camera
  • High-precision triple GPS and jamming shielding system enable precise flight
  • It's microwave Godolai application of precision control support

AFi grain dispensing system that supports 20L grain dispensing

  • Real-time navigator flight and aircraft status on the ground in real-time
  • Check the drug residue and spray condition with a transparent window

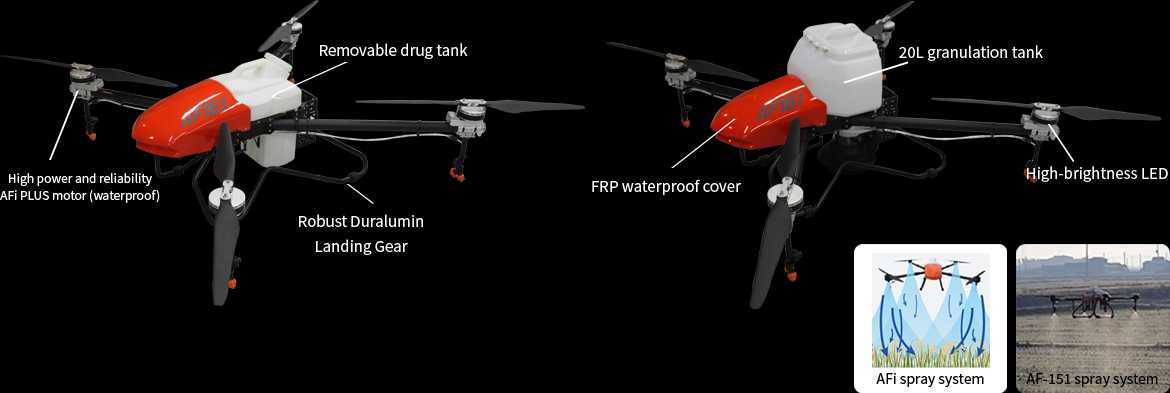

AF-151 main composition

AF-151 주요구성

Comfortably fly – AFi flight assistance system

1 Dual FPV camera

Real-time obstacle check using 1080 grade FPV camera

2 High-precision GPS

Triple GPS and jamming radio shielding system enable precise flight

3 Height-radar

Microwave height-radar application of precision control support

4 4WAY 8 NOZZLE

FLEXIBLE Y-TYPE DUAL NOZZLE

5 Application of exposed hose

Reduce damage and replacement of hose

Agricultural Force Innovation
